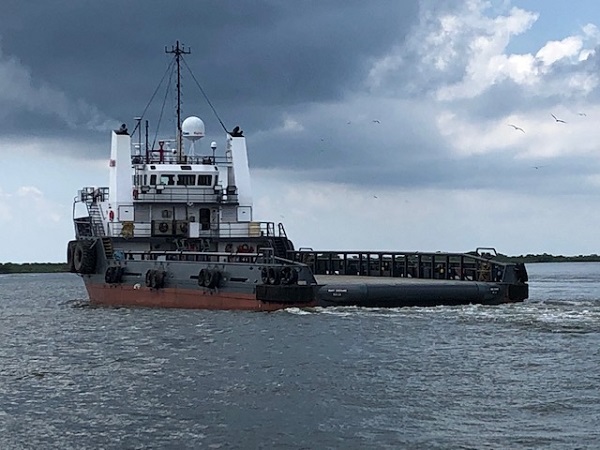

Vessel Specifications

General
Type: Supply
Gross Tonnage:  93 tons
Net Tonnage:  63 tons
Year Built:  2002
Official Number: 1123796
USCG Inspection:  Yes
ABS Loadline:  Yes

Dimensions
Length:  185 ft.
Beam:  46 ft.
Depth:  13 ft.
Clear Deck:  120 ft. x 39 ft.
Clear Deck Cargo:  4680 sq. ft.
Deck Cargo:  850 Long Tons
Minimum Draft:  8 ft.
Maximum Draft:  13 ft.

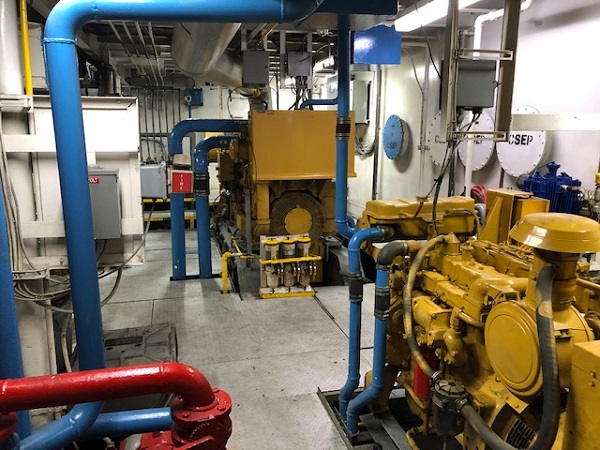

Propulsion
Main Engines:  Caterpillar
Model:  3512MUI
Max HP:  2400 at 1200 RPM
Steering:  Electric / Hydraulic
Speed:  12 Knots
Bow Thruster:  (1) Schottel at 350hp







Owner/Agent:  Cheramie Marine, LLC

Capacities
Fuel Capacity:  58,540 USG
Ballast Water:  111,350 USG
Liquid Mud:  60,900 USG
Liquid Mud:  1,450 BBLs
Potable Water:  15,000 USG
Lube Oil:  2,060 USG
Dirty Oil:  5,300 USG
Hydraulic Oil:  600 USG
Sewage:  5,800 USG
Dry Bulk:  3,300 Cubic Feet
Fire Monitor: 1 x 1,200 GPM

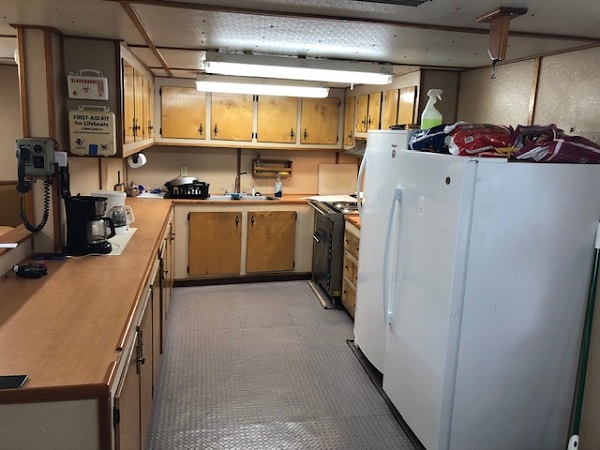

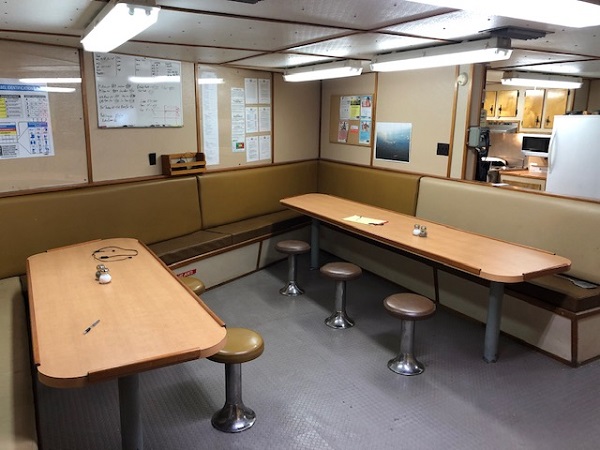

Accomodations

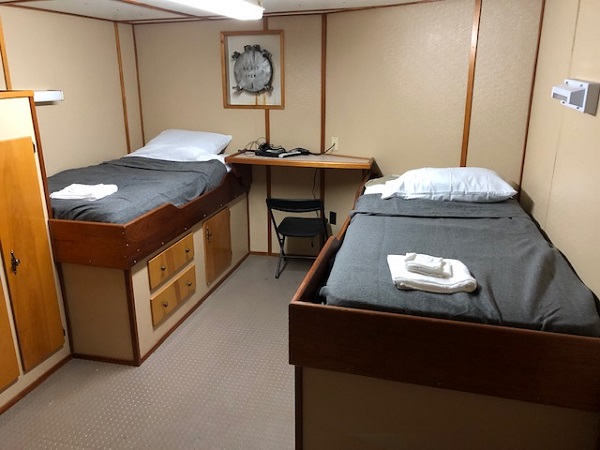

Berths:  17
Walk in Cooler:  Yes
Walk in Freezer:  Yes

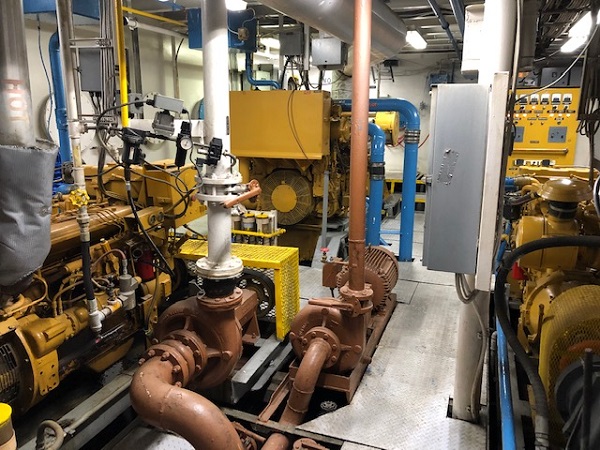

Generators
(2) 99 KW Cat 3304
Voltage:  480

Electronics
Radars:  (2) Furuno
Radios:  (3) VHF  (1) SSB
GPS:  Yes (2)
Fathomter:  Yes
